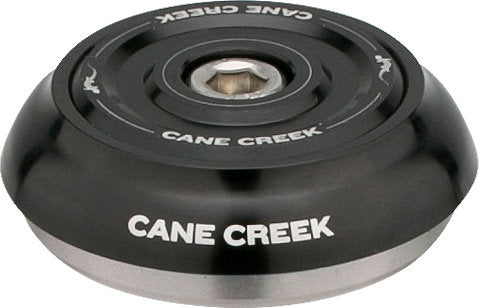

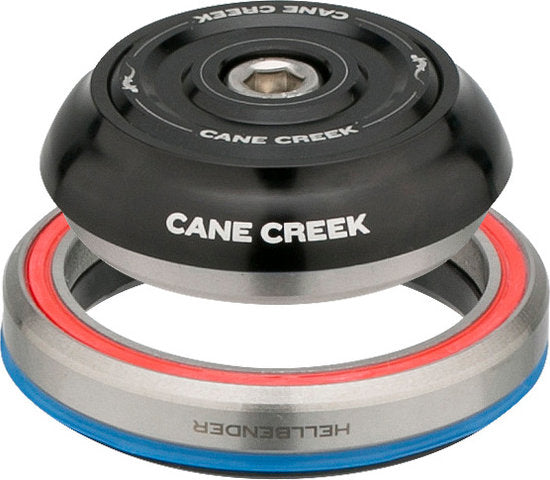

Cane Creek Hellbender 70 IS41 28.6 - IS52 40 Headset

Product Description Designed like 110, priced like 40: the Hellbender 70 IS 41 Headset by Cane Creek The Cane Creek Hellbender 70 headset serves as a link between the 40 and the 110 headset series. It has the design elements, seals and bearings that characterize the 110 headset, but its price is more reminiscent of the 40 series. The Cane Creek Hellbender stainless steel bearing is specifically designed to withstand the rigors of extreme weather conditions. In addition, the upper and double lower bearing seals provide perfect protection against dust, mud and other contaminants. Durability and reliability of the Hellbender 70 headset can thus definitely compete with the 110 series. Use: Designed for 1 1/8" upper head tube diameters and 1.5" lower head tube diameters combined with 1 1/8" - 1.5" tapered forks. Specifications: Application: Cross Country, Cyclocross Top Bearing: 1 1/8" Bottom Bearing: 1.5" Steerer Tube: 1 1/8" - 1.5" tapered Design: integrated (IS) Technical Information: Bearings: Hellbender premium stainless steel bearings Bearing Seat: 45° x 36° Top Stack Height: 9 mm Bottom Stack Height: 1 mm Top Outer Diameter: 41 mm Top Inner Diameter: 28.6 mm Bottom Outer Diameter: 52 mm Bottom Inner Diameter: 40 mm Top Cap: aluminium Features: low-friction seals, without loose parts Interlok® Spacer compatible Standardized Headset Identification System (S.H.I.S.): In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritcheahave agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the top and bottom parts of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both top and bottom parts must be combined. Nomenclature: EC: Bearings contained within headset cups that are located outside of the frame (External Cup) ZS: Bearings contained within pressed-in headset cups where the cup and bearings rest inside the frame (Zero Stack) IS: Bearings that fit directly into a bonded or machined interface that is integrated into the frame (Integrated) Manufacturer Number: BAA1188 Contents: 1 x Cane Creek Hellbender 70 top bearing 1 x Cane Creek Hellbender 70 bottom bearing 1 x Cane Creek headset cap 1 x Cane Creek Ahead top cap 1 x star nut with bolt 1 x Cane Creek crown race Manufacturer: Cane Creek Cycling Components 355 Cane Creek Rd Fletcher NC 28732 USA info@canecreek.com Distributor: Cosmic Sports GmbH Leyher Straße 47 90763 Fürth Germany info@cosmicsports.de
