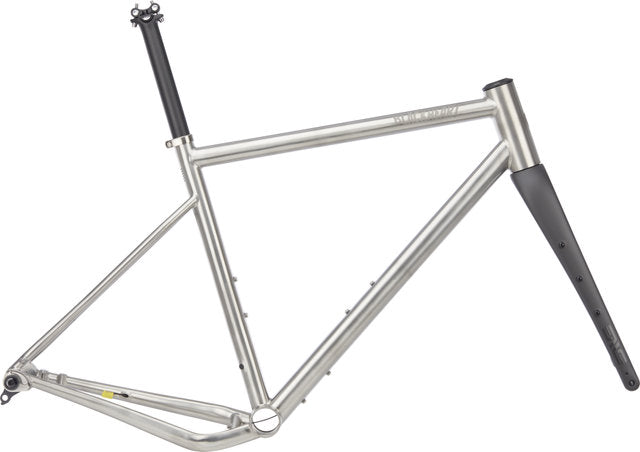

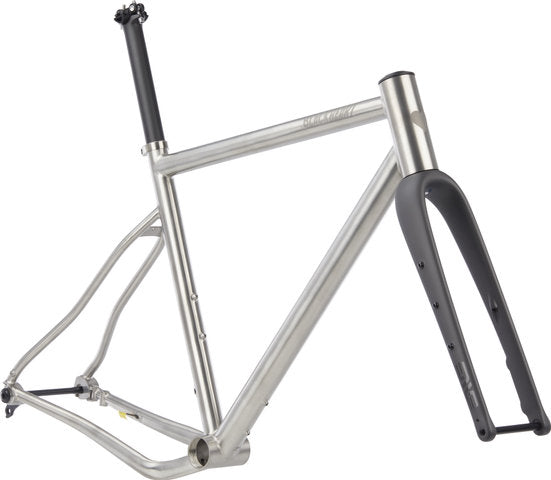

Blackheart gravel ti frame kit

Product Description Discover the ultimate Blackheart Gravel Ti frameset that leaves nothing to be desired! With a frame made from high-quality titanium and a carbon fork, this bike offers a perfect balance of strength and lightness. You can choose between a 1x or 2x chainring configuration (electronic only), giving you flexibility to adapt your ride. Tire clearance up to 700 x 47C in the front and 700 x 50C in the rear allows you to ride confidently on any terrain. Compatibility with large brake rotors both front and rear ensures outstanding braking performance. Perfect for the gravel adventure of your life – this bike is a true all-rounder with no limits. Product Specifications: Application: Gravel Housing Width: 85.5 mm Wheel size: 28" Brake Type: disc Seat clamp type: Bolt Frame material: Titanium Fork material: Carbon Gender: Women's, Men's titanium brushed | 1 1/8" | XXS | 55 mm | 28": Wheel size: 28" titanium brushed | 1 1/8" | XS | 55 mm | 28": Wheel size: 28" titanium brushed | 1 1/8" | S | 55 mm | 28": Wheel size: 28" titanium brushed | 1 1/8" | M | 55 mm | 28": Wheel size: 28" titanium brushed | 1 1/8" | L | 53 mm | 28": Wheel size: 28" titanium brushed | 1 1/8" | XL | 53 mm | 28": Wheel size: 28" titanium brushed | 1 1/8" | XXL | 53 mm | 28": Wheel size: 28" titanium brushed | 1 1/8" | XXXL | 53 mm | 28": Wheel size: 28" titanium brushed | 1 1/8" | XXXXL | 28": Wheel size: 28" Technical Information: Brake Mount: Disc PM6 (Direct Mount 160 mm) Wheel Standard: 12 x 100 mm (Standard) Seatpost diameter: 31.6 mm Belt Compatibility: No Bottom bracket standard: T47 titanium brushed | 1 1/8" | XXS | 55 mm | 28": Steerer Tube: 1 1/8" Fork Offset: 55 mm titanium brushed | 1 1/8" | XS | 55 mm | 28": Steerer Tube: 1 1/8" Fork Offset: 55 mm titanium brushed | 1 1/8" | S | 55 mm | 28": Steerer Tube: 1 1/8" Fork Offset: 55 mm titanium brushed | 1 1/8" | M | 55 mm | 28": Steerer Tube: 1 1/8" Fork Offset: 55 mm titanium brushed | 1 1/8" | L | 53 mm | 28": Steerer Tube: 1 1/8" Fork Offset: 53 mm titanium brushed | 1 1/8" | XL | 53 mm | 28": Steerer Tube: 1 1/8" Fork Offset: 53 mm titanium brushed | 1 1/8" | XXL | 53 mm | 28": Steerer Tube: 1 1/8" Fork Offset: 53 mm titanium brushed | 1 1/8" | XXXL | 53 mm | 28": Steerer Tube: 1 1/8" Fork Offset: 53 mm titanium brushed | 1 1/8" | XXXXL | 28": Steerer Tube: 1 1/8" Approved For: Max. Fork Length: 395 mm Weight Limit: 125 kg Rider Chainring Count Compatibility: 1x, 2x Max Tire Size Rear: 47-622 (700 x 47C) Max. Chainring Size: 1x 48 T, 2x 31-48 T (Shimano), 2x 33-46 T (SRAM Wide Double) Max. Disc Brake Size Rear: 160 mm Max. Disc Brake Size Front: 160 mm Product Features: high-performance gravel bike frame designed for both men and women, featuring a robust titanium frame and carbon fork for unmatched durability and comfort on rough terrains seatpost diameter of 31.6 mm, compatible with a wide range of aftermarket seatposts for customizable comfort and performance T47 bottom bracket standard ensures a reliable and noise-free drivetrain, compatible with a variety of cranksets supports maximum disc brake sizes of 160 mm at both the front and rear, providing superior stopping power in all conditions accommodates up to 47-622 (700 x 47C) tire sizes in the rear, allowing for optimal traction and comfort on gravel roads wheel standard of 12 x 100 mm at the front, ensuring compatibility with modern gravel wheelsets for a smooth and responsive ride UDH derailleur hanger Geometry: titanium brushed | 1 1/8" | XXS | 55 mm | 28": Head Tube Angle: 71 Stack: 531 mm Standover Height: 725 mm Wheelbase: 1024 mm Reach: 388 mm Chainstay Length: 427 mm Seat Tube Angle: 74.5 BB Drop: 74 mm Head Tube Length: 110 mm Recommended Rider Height: 155 - 160 cm Seat Tube Length: 440 mm Frame Size: 46 cm Top Tube Length: 535 mm Effective Top Tube Length: 535 mm titanium brushed | 1 1/8" | XS | 55 mm | 28": Head Tube Angle: 71 Stack: 540 mm Standover Height: 740 mm Wheelbase: 1029 mm Reach: 390 mm Chainstay Length: 427 mm Seat Tube Angle: 74.5 BB Drop: 74 mm Head Tube Length: 120 mm Recommended Rider Height: 160 - 168 cm Seat Tube Length: 460 mm Frame Size: 49 cm Top Tube Length: 540 mm Effective Top Tube Length: 540 mm titanium brushed | 1 1/8" | S | 55 mm | 28": Head Tube Angle: 71 Stack: 550 mm Standover Height: 755 mm Wheelbase: 1035 mm Reach: 393 mm Chainstay Length: 427 mm Seat Tube Angle: 74.5 BB Drop: 74 mm Head Tube Length: 130 mm Recommended Rider Height: 168 - 173 cm Seat Tube Length: 480 mm Frame Size: 52 cm Top Tube Length: 545 mm Effective Top Tube Length: 545 mm titanium brushed | 1 1/8" | M | 55 mm | 28": Head Tube Angle: 71.25 Stack: 564 mm Standover Height: 770 mm Wheelbase: 1044 mm Reach: 398 mm Chainstay Length: 427 mm Seat Tube Angle: 74 BB Drop: 73 mm Head Tube Length: 145 mm Seat Tube Length: 500 mm Recommended Rider Height: 173 - 178 cm Frame Size: 54 cm Top Tube Length: 560 mm Effective Top Tube Length: 560 mm titanium brushed | 1 1/8" | L | 53 mm | 28": Head Tube Angle: 71.25 Stack: 579 mm Standover Height: 785 mm Wheelbase: 1052 mm Reach: 404 mm Chainstay Length: 427 mm Seat Tube Angle: 74 BB Drop: 73 mm Head Tube Length: 160 mm Recommended Rider Height: 178 - 183 cm Seat Tube Length: 515 mm Frame Size: 56 cm Top Tube Length: 570 mm Effective Top Tube Length: 570 mm titanium brushed | 1 1/8" | XL | 53 mm | 28": Head Tube Angle: 71.5 Stack: 594 mm Standover Height: 800 mm Wheelbase: 1061 mm Reach: 410 mm Chainstay Length: 427 mm Seat Tube Angle: 74 BB Drop: 73 mm Head Tube Length: 175 mm Recommended Rider Height: 183 - 188 cm Seat Tube Length: 530 mm Frame Size: 58 cm Top Tube Length: 580 mm Effective Top Tube Length: 580 mm titanium brushed | 1 1/8" | XXL | 53 mm | 28": Head Tube Angle: 71.5 Stack: 608 mm Standover Height: 815 mm Wheelbase: 1076 mm Reach: 420 mm Chainstay Length: 427 mm Seat Tube Angle: 73.5 BB Drop: 72 mm Head Tube Length: 190 mm Recommended Rider Height: 188 - 193 cm Seat Tube Length: 545 mm Frame Size: 60 cm Top Tube Length: 600 mm Effective Top Tube Length: 600 mm titanium brushed | 1 1/8" | XXXL | 53 mm | 28": Head Tube Angle: 71.5 Stack: 627 mm Standover Height: 830 mm Wheelbase: 1092 mm Reach: 429 mm Chainstay Length: 427 mm Seat Tube Angle: 73.5 BB Drop: 72 mm Head Tube Length: 210 mm Recommended Rider Height: 193 - 201 cm Seat Tube Length: 565 mm Frame Size: 62 cm Top Tube Length: 615 mm Effective Top Tube Length: 615 mm titanium brushed | 1 1/8" | XXXXL | 28": Head Tube Angle: 71.5 Stack: 645 mm Standover Height: 845 mm Wheelbase: 1113 mm Reach: 444 mm Chainstay Length: 427 mm Seat Tube Angle: 73.5 BB Drop: 72 mm Head Tube Length: 230 mm Recommended Rider Height: 201 - 206 cm Seat Tube Length: 585 mm Top Tube Length: 635 mm Effective Top Tube Length: 635 mm Manufacturer Number: titanium brushed | 1 1/8" | XXS | 55 mm | 28": 25BHGTBR46 titanium brushed | 1 1/8" | XS | 55 mm | 28": 25BHGTBR49 titanium brushed | 1 1/8" | S | 55 mm | 28": 25BHGTBR52 titanium brushed | 1 1/8" | M | 55 mm | 28": 25BHGTBR54 titanium brushed | 1 1/8" | L | 53 mm | 28": 25BHGTBR56 titanium brushed | 1 1/8" | XL | 53 mm | 28": 25BHGTBR58 titanium brushed | 1 1/8" | XXL | 53 mm | 28": 25BHGTBR60 titanium brushed | 1 1/8" | XXXL | 53 mm | 28": 25BHGTBR62 titanium brushed | 1 1/8" | XXXXL | 28": 25BHGTBR64 Contents: 1 × Blackheart Gravel Ti frame 1 × Fork 1 × Headset 1 × Seatpost 1 × Seatpost clamp 2 × Thru-axles 1 × Spare derailleur hanger Weight: titanium brushed | 1 1/8" | L | 53 mm | 28": 1990 g Manufacturer: BlackHeart Bike Company 10219 Worchester Circle Truckee CA 96161 USA hello@blackheartbikeco.com Distributor: bc GmbH Carlo-Schmid-Straße 12 52146 Würselen Germany info@bike-components.de
