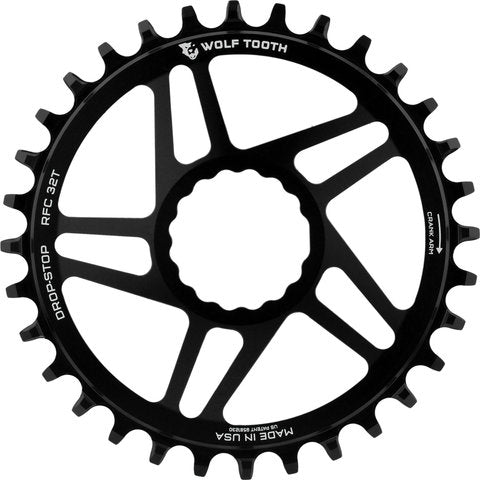

Wolf Tooth Components Direct Mount Chainring for Race Face Cinch

Product Description With the advantages of Drop-Stop: the Race Face chainrings by Wolf Tooth Components These chainrings are compatible with Race Face Cinch cranks such as Turbine, Next SL, Sixc and Aeffect. They feature the unique Drop-Stop® design, which stands for durability, secure chain guidance and dirt-repellent properties. Specifications:Application:Cross Country, All MountainMount:Cinch Direct MountTeeth:26 T, 28 T, 30 T, 32 T, 34 T, 36 TSpeed:1x9-speed, 1x10-speed, 1x11-speed, 1x12-speedTechnical Information:Offset:6 mmChainline:49 mm (26 - 34 t), 51 mm (36 t)Material:aluminium (7075-T6)Compatibility:all Race Face Cinch cranksall 9-, 10- and 11-speed chainsSRAM Eagle, KMC, Connex and Wippermann 12-speed chains10-speed chain recommended for 9-speed drivetrainsFeatures:Wolf Tooth Wide-Narrow designStandard offset for 142 mm installation width, 36 t with additional chainstay clearanceMade in the USA Note from the manufacturer:Use of a damped rear derailleur recommended. For very muddy conditions a chain guide in combination with clutch rear derailleur is recommended.Technology:Drop-Stop® A Wolf Tooth has invested countless hours in the design, prototyping and testing of their Wide-Narrow chainrings and has developed a highly innovative tooth profile. Test riders around the world have confirmed that this design delivers unparalleled performance. The right side of the chainring tooth has a different shape than the left side. The right side transmits the power to the chain and the left side opens a free space for cleaning mud and dirt. Since the two sides have completely different functions, it makes sense to design them differently, true to the motto: extra reinforcement where you need it, less material where you don't. The right side of the Drop-Stop tooth is as wide as possible to distribute the load over a larger area, which also minimises wear. The left side of the Drop-Stop tooth helps to guide the chain, but it does not transmit any load. Therefore, the left side is narrower than the chain roller. Wear is not an issue on this side, so Wolf Tooth was able to save material and create a better mud clearance channel. More free space means less friction and less chance of the chain being dropped due to mud. In the A version, the original version of Drop-Stop, the profile is optimised for use on mountain bikes. The wide teeth are slightly wider than Drop-Stop B. The outer sides of the narrow and wide teeth guide the chain. Manufacturer Numbers:26 tooth:RFC2628 tooth:RFC2830 tooth:RFC3032 tooth:RFC3234 tooth:RFC3436 tooth:RFC36Contents:1 x Wolf Tooth Components Direct Mount Race Face Cinch Chainring Weight: black | 30 : 58 g black | 32 : 63 g Manufacturer: Wolf Tooth Components 6400 W 105th St Bloomington MN 55438 USA info@wolftoothcomponents.com Distributor: Cosmic Sports GmbH Leyher Straße 47 90763 Fürth Germany info@cosmicsports.de
