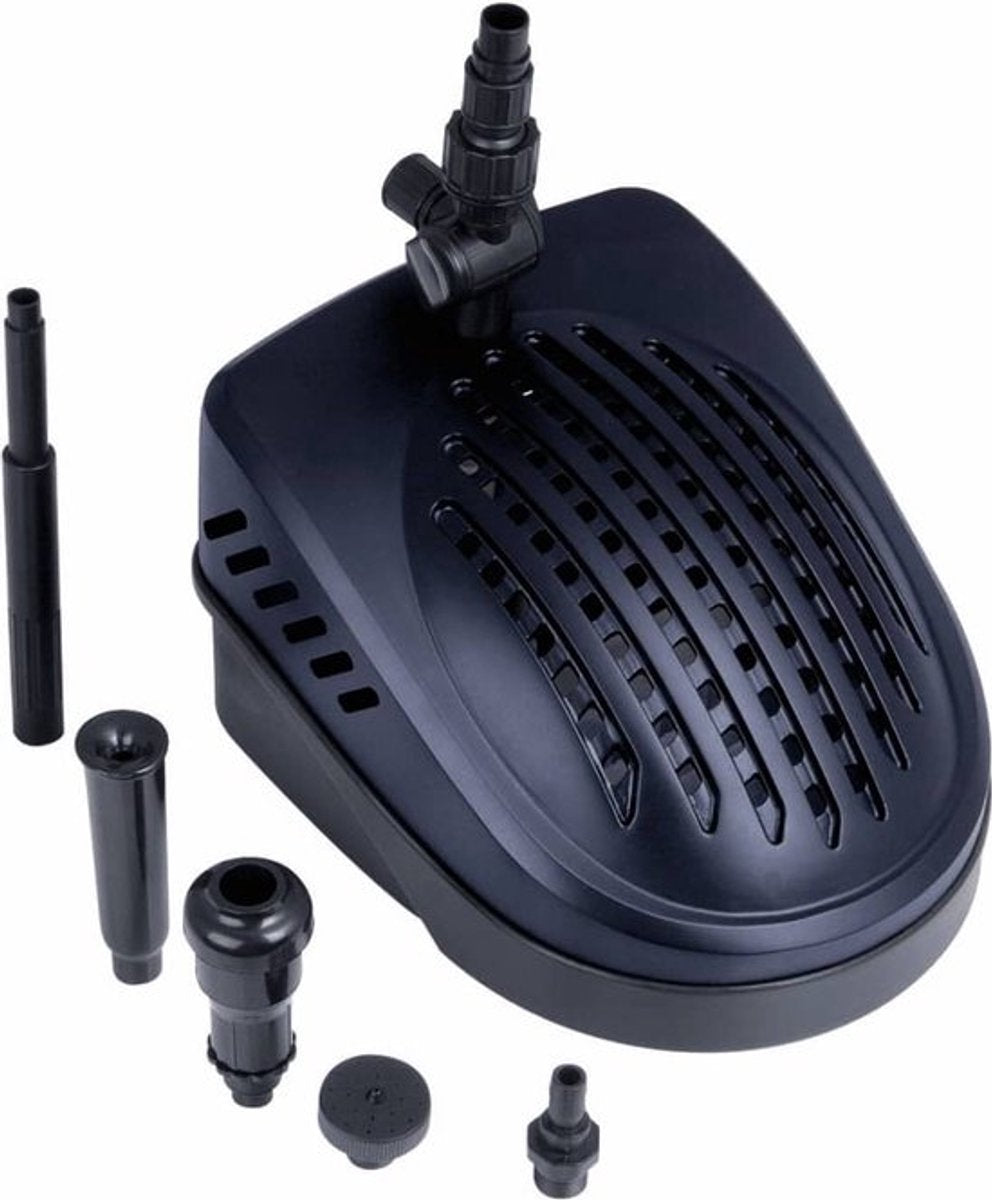

Ubbink - powerclear UVC - 5000 - filter system

This pond pump has three functions in one device: filtration, pumping and purification.

The filter pump is equipped with a 5-watt UVC unit and a foam filter. It is suitable for ponds from 2,500 liters (with fish) to 5,000 liters (without fish).

Thanks to its high-quality plastic housing, this pump is waterproof. The pond pump comes with nozzles.

• Cable length: 10 m
• Power consumption: 30 W
• Pump capacity: 1,320 L/h
• Lifting height: 1.9 m
• UVC lamp: 5 W
• UVC output: 1/2''
• Dimensions: 32 x 25 x 19 cm

Safety Instructions This device has been manufactured using current technology and in accordance with applicable safety regulations. However, risks to persons and property may arise if the device is used incorrectly or not as intended, or if the safety instructions are not followed. WARNING: UV rays are hazardous to eyes and skin. The UV-C ray emitter must not be operated while it is removed from the housing! CAUTION: This device contains a UV-C ray emitter! Unintended use of the device or damage to the housing can result in the emission of hazardous UV-C rays. UV-C rays can cause damage to eyes and skin, even in small quantities. • The device must not be operated while people are in the water! • The device must be disconnected from the power supply before carrying out any work (installation, maintenance, etc.) or before placing your hands in the water! • The power supply must comply with the product specifications. Do not connect the device if the power supply does not meet the specified regulations! Further information can be obtained from your local, approved electrician. • The appliance's power supply must be protected by a residual current device (FI or RCD) with a rated residual current of maximum 30 mA. • The appliance's mains connection must be located more than 3.5 m from the pond. • It is prohibited to open the appliance or its components unless explicitly stated in these instructions. This also applies to any technical modifications to the appliance. • The appliance is equipped with an integrated circuit breaker that automatically interrupts the power supply if the appliance is opened. • The mains plug and all connection points must always be kept dry. The appliance's connection cable must be routed in a protected manner to prevent possible damage. • The appliance must only be put into operation after all components and hose connections have been installed. • Ensure that the appliance is switched off when no water is flowing through the appliance and there is no filter sponge in the appliance. • The appliance must only be used at water temperatures between +5 °C and +35 °C. • Devices with visible damage must not be used! The power cord cannot be replaced. If the cord becomes damaged, the UV-C device must be disposed of properly. • Never lift or pull the device by the power cord! • Never look directly into the switched-on UV-C radiation emitter, but always check its operation with the device closed by using the inspection window. • The device is not suitable for use by persons (including children) with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, unless they are supervised by a person responsible for their safety or have been instructed in the use of the device. Children must be supervised to ensure that they do not play with the device. WARNING: The device must be disconnected from the power supply during installation work! Assembling the device • Assemble the flow regulator, telescopic tube, and fountain nozzles and screw them onto the connecting thread of the UV-C housing. • Extend the telescopic tube to the desired length and align it vertically. • The height and shape of the fountain jet depend on the fountain nozzle used. • Close the second adjustable outlet on the flow regulator or use it for connecting a hose to a gargoyle or stream. • The height of the fountain jet and the water volume for the second outlet can be adjusted separately with the respective flow regulator. Installing the device: Place the device horizontally in the pond on a firm, silt-free surface so that it is completely submerged. Switching the device on and off: The pump and the UV-C device can only be switched on and off simultaneously. Thanks to the integrated safety switch, the UV-C device only switches on if the device housing is properly closed. Caution! Dangerous electrical voltage: The device parts and the pond water may be subject to dangerous electrical voltage if the cables or components are defective. Therefore, always unplug the power plug before working on the device or putting your hands in the water.
