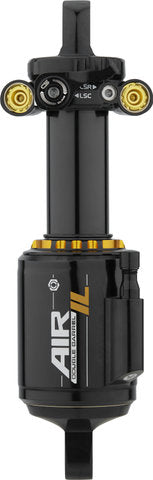

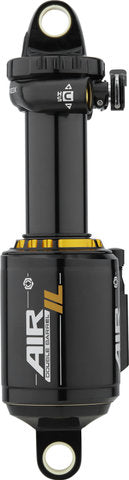

Cane Creek DBair IL Double Barrel Air Shock

Product Description: With new sealing technologies, the tried-and-tested Double Barrel Air Shock reaches a completely new level of reliability and durability. The DB Air [IL] is the first air shock from Cane Creek with the newly developed LinEair spring. The DB Air [IL] has a low breakaway torque at the beginning of the travel, offers good support in the mid-travel and a higher progression at the end for improved bottom-out protection. The result is a sensitive air shock with a linear travel characteristic, which remains stable in its travel. Specifications:Application:Trail, All MountainSuspension Type:airSize x Stroke (mm):165 x 38 mm, 170 x 30 mm, 170 x 35 mm, 184 x 44 mm, 190 x 40 mm, 190 x 45 mm, 190 x 50 mm, 200 x 50 mm, 200 x 57 mm, 210 x 50 mm, 210 x 55 mm, 216 x 57 mm (for Specialized Enduro), 216 x 63 mmTechnical Information:Damping System:Twin TubeBushing Material:AluminiumBody Material:AluminiumShaft Material:AluminiumHole:15 mmAdjustment Options:Compression:high-speed and low-speedRebound:high-speed and low-speedRemote:optional (OPT)Features:high reliability with new oil head seal and improved air piston sealindependent 4-way high- and low-speed compression and rebound adjustmentlubrication through 4 valves (Twin Tube)LinEair Air Spring (low breakaway torque, higher progression at the end)Climb Switch Technology: damping adjustment when riding uphill for compression and rebound (rocker suppression)low-friction IGUS High Performance bushing with 1/2" universal axle15.08 mm holeanodised, laser graphicshandmade in North Carolina, USATechnology:CS Technology: CS is the most innovative climbing tech on the market. The proprietary climbing function (patent pending) for the Double Barrel rear shock changes the entire low frequency dynamics of the damper, which is especially needed for the requirements of uphill riding. 4-Way Adjustment: Two hexagonal bolts, placed one inside the other, allow the outer one to be used for high-speed compression and rebound, and the inner one for low-speed compression and rebound. For adjustment Cane Creek provides a small tool that fits in any bag or backpack. In addition, no knobs were used to keep the dimensions of the somewhat voluminous rear shock small. The adjustment range of the Double Barrel Air is extremely wide and covers a very wide range of rear triangle characteristics without having to resort to corresponding tunes. The " spring rate" can of course be adjusted by air via a rear shock pump. Low-Speed Compression (LSC): The low-speed compression stage reacts to slow shaft speeds. This ensures less bobbing when pedalling, and also reduces sagging of the rear triangle in adjacent areas or while jumping. The Double Barrel Air achieves exactly these characteristics by separating the high and low-speed compression stages, thus preventing a reduction in travel. High Speed Compression (HSC): Hard impacts on root passages, stones or hard landings are the job of the high-speed compression stage. The higher the high-speed pressure level is set, the greater the bottom-out protection. Low-Speed Rebound (LSR): This setting corresponds to the simple rebound adjustment, which is also available from other brands. In this case, it's difficult to find a compromise between " fast enough for roots" and " slow enough for jumps and hard landings" . High Speed Rebound (HSR): The additionally adjustable high-speed rebound allows a slower rebound speed for hits that would compress the rear shock too fast and too far. Find the Matching Bushings Here:6 mm bushings8 mm bushingsManufacturer Numbers:165 mm x 38 mm:BAD2060170 mm x 30 mm:BAD2061170 mm x 35 mm:BAD2062184 mm x 44 mm:BAD2063190 mm x 40 mm:BAD2064190 mm x 45 mm:BAD2065190 mm x 50 mm:BAD2066200 mm x 50 mm:BAD2067200 mm x 57 mm:BAD2068210 mm x 50 mm:BAD2069210 mm x 55 mm:BAD2070216 mm x 57 mm / Specialized Enduro:BAD2140216 mm x 63 mm:BAD2071Contents:1 x Cane Creek Double Barrel Air IL rear shock2 x Cane Creek PTFE bushings (pre-pressed)1 x adjustment toolnot incl. bushings Manufacturer: Cane Creek Cycling Components 355 Cane Creek Rd Fletcher NC 28732 USA info@canecreek.com Distributor: Cosmic Sports GmbH Leyher Straße 47 90763 Fürth Germany info@cosmicsports.de
