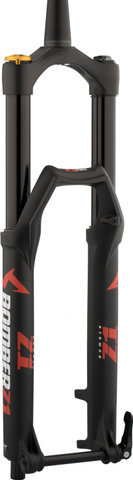

Marzocchi Bomber Z1 Coil 27.5 Boost Suspension Fork

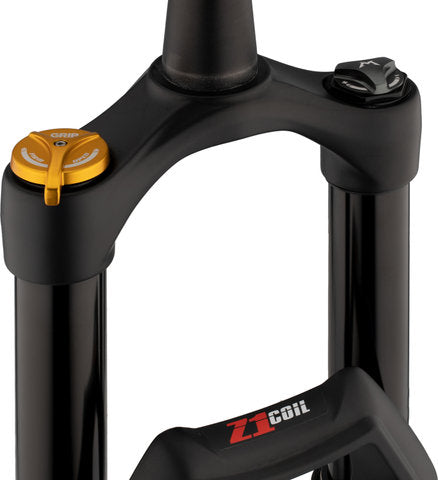

Product Description The Bomber Z1 Coil 27.5" Boost suspension fork by Marzocchi offers legendary ride quality in a modern chassis. With the Bomber Z1 Coil, Marzocchi offers a suspension fork with a specially hardened, super-light silicon-chromium steel spring. The preload of the spring is adjusted via the top cap and is purely designed to adapt the sag (negative spring travel) to the rider's weight, but has no influence on the spring rate. In addition to the typical M-crown design, the fork offers a stanchion tube diameter of 36 mm, a travel of 160 mm to 180 mm, and Grip damping with adjustable compression and rebound. All forks are supplied with a medium coil. Specifications: Application: All Mountain, Enduro Wheel Size: 27.5" (650B) Suspension Type: steel coil Travel: 170 mm, 180 mm Steerer Tube: 1 1/8" - 1.5" tapered Axle Type: thru-axle with quick release lever (15 x 110 mm) Brake Mount: disc PM 7" (direct mount 180 mm) Technical Information: Offset: 44 mm Steerer Tube Length: 258 mm Steerer Tube Diameter (Stem): 28.6 mm Steerer Tube Diameter (Crown Race): 40 mm Axle to Crown: 559.1 mm (at 170 mm), 569.1 mm (at 180 mm) Over Locknut Dimension: 110 mm Stanchion Tube Diameter: 36 mm Steerer Tube Material: aluminium Crown Material: aluminium Stanchion Tube Material: aluminium Lower Tube Material: magnesium Dropout Material: aluminium Adjustment Options: Compression: 2-position Sweep Adjust (Open, Firm) Rebound: yes Suspension Stiffness: steel coil adjust Remote: no Travel Adjustment: no Approved For: Tyre Size (max.): 27.5 x 2.5" Note: From a tyre size of 27.5 x 2.5", the tyre clearance must be checked with the fork fully compressed. It should be at least 8 mm measured from the fork crown. Rotor Size (max.): 203 mm Features: Grip Sweep damping with adjustable rebound and infinitely adjustable low-speed compression stage specially hardened, super-light silicon-chromium steel spring Air Assist system for progressive characteristic and breakdown protection spring preload via top cap complex spring guidance system for noiseless springs black anodised stanchion tubes all forks are supplied with a medium coil Technology: Grip: Inspired by motocross technology, the Grip damper cartridge works with a spring-loaded, independently operating floating piston. Grip technology allows excess damping oil to flow through ports at the top of the damper, ensuring even damping and increasing durability. Models: matte black / 170 mm / 1.5" tapered / 15 x 110 mm / 44 mm: Suspension Travel: 170 mm Steerer Tube: 1 1/8" - 1.5" tapered Flow: 44 mm Brake Mount: Disc PM 7" (direct mount 180 mm) Axle Type: thru-axle with quick release lever (15 x 110 mm) Manufacturer Number: 912-01-100 gloss red / 180 mm / 1.5" tapered / 15 x 110 mm / 44 mm: Suspension Travel: 180 mm Steerer Tube: 1 1/8" - 1.5" tapered Flow: 44 mm Brake Mount: Disc PM 7" (direct mount 180 mm) Axle Type: thru-axle with quick release lever (15 x 110 mm) Manufacturer Number: 912-01-101 matte black / 180 mm / 1.5" tapered / 15 x 110 mm / 44 mm: Suspension Travel: 180 mm Steerer Tube: 1 1/8" - 1.5" tapered Flow: 44 mm Brake Mount: Disc PM 7" (direct mount 180 mm) Axle Type: thru-axle with quick release lever (15 x 110 mm) Manufacturer Number: 912-01-099 Contents: 1 x Marzocchi Bomber Z1 suspension fork 1 x Marzocchi 15 x 110 mm thru-axle 1 x star nut Manufacturer: FOX Factory GmbH Gewerbepark 6 66989 Höhfröschen Germany info@ridefox.com
