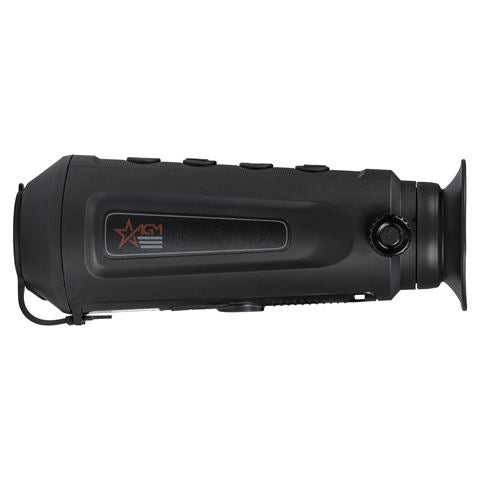

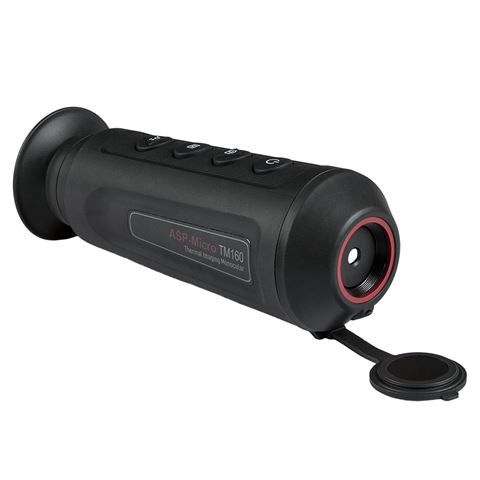

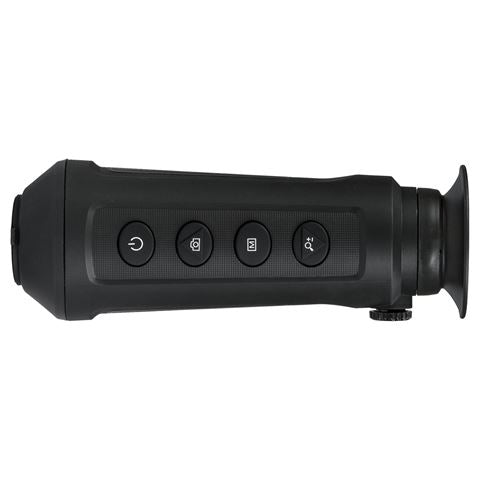

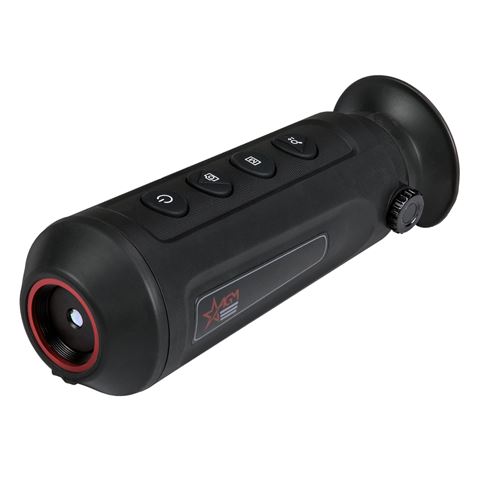

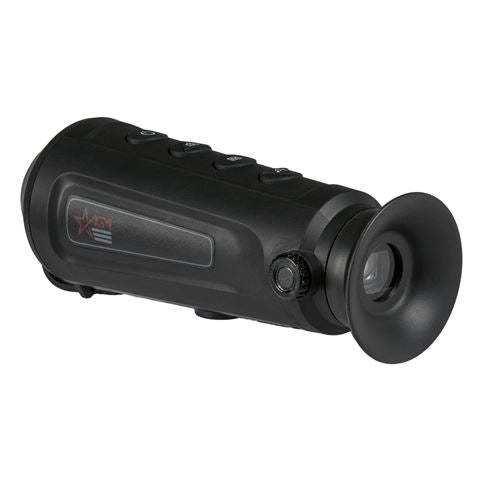

AGM ASP-Micro TM-160 Thermal Imaging Camera

The ASP-Micro TM160 from the American company AGM Global Vision is the perfect entry-level thermal imaging camera. With a 160x120 resolution, full-color display, up to 4x digital zoom, and a battery life of up to 7 hours, this thermal camera offers everything you need. This makes the ASP-Micro an ideal detection tool for countless applications. Its lightweight and compact size make it a pocket-sized thermal camera.

Internal properties
The camera is equipped with a 160x120 detector and has a 50Hz refresh rate (real-time image). The image is projected onto a full-color display (720x540 pixels). The optical magnification of the telescope is 1x, but with a digital zoom, you can further enlarge the image up to 4x.

Range of the thermal image
The thermal camera can detect vehicles up to 559m away and people up to 182m. This is the distance at which you "see something" and should not be confused with the identification distance (for example, with identification, you can determine whether the person you see is male or female). The camera's field of view is 15.6 degrees horizontally (at 1x zoom). The fixed focus eliminates the need for continuous manual focusing.

Useful features
You can display the surroundings to your preference using four color palettes: White hot, Black hot, Red hot, and Fusion. The thermal camera also features a Hot Track function that instantly identifies animals/people with a cursor. You can also measure the approximate distance to people, objects, or animals using the "Distance measurement" function. Brightness and contrast can be adjusted automatically or manually (five levels).

Make and share recordings
With the thermal imaging camera, you can record endless videos and take photos. Your recordings are automatically saved to the internal 8GB memory. Using a Wi-Fi connection or the included USB-C cable, you can easily transfer your recordings to your smartphone, tablet, laptop, etc.

Stream images to your smartphone or tablet
Just like with high-end thermal cameras, the ASP-Micro lets you stream images live (via Wi-Fi) to your smartphone/tablet and remotely control the camera settings. This is possible with the free T-Vision app (for iOS and Android).

Physical properties
Because the viewer IP67 certified, you can take the device anywhere with you, worry-free. This means the thermal imaging camera is waterproof and dustproof and can withstand a 1.5m drop onto concrete. You can also use the camera without any problems in very cold temperatures (-20°C) and extreme heat (up to +55°C). The internal Li-ion battery ensures up to 7 hours of use. The camera also has a standby mode.

Application AGM ASP-Micro TM-160

Are you a hobbyist, looking to use thermal imaging for the first time, or simply don't use it often in your applications? Then the ASP-micro TM160 is highly recommended. The camera has all the features you need and offers a very acceptable resolution and viewing distance. The advantage of thermal imaging is that it's never affected by weather or ambient light , because the image is displayed based on heat sources. This makes the camera universally applicable for all kinds of situations where you need to image something invisible to your own eyes. For example, you can use the camera if you:

• likes to see what walks in the forest at night
• want to check if someone is walking on your property
• you have to find your pet in the garden
• are a hunter and want to detect game
• want to detect draft leaks in your home
• want to locate hidden water or heating pipes

Want to learn all about thermal imaging or need advice on the right camera for your application? Feel free to contact us.
