Abi kvm switch - hdmi usb jack

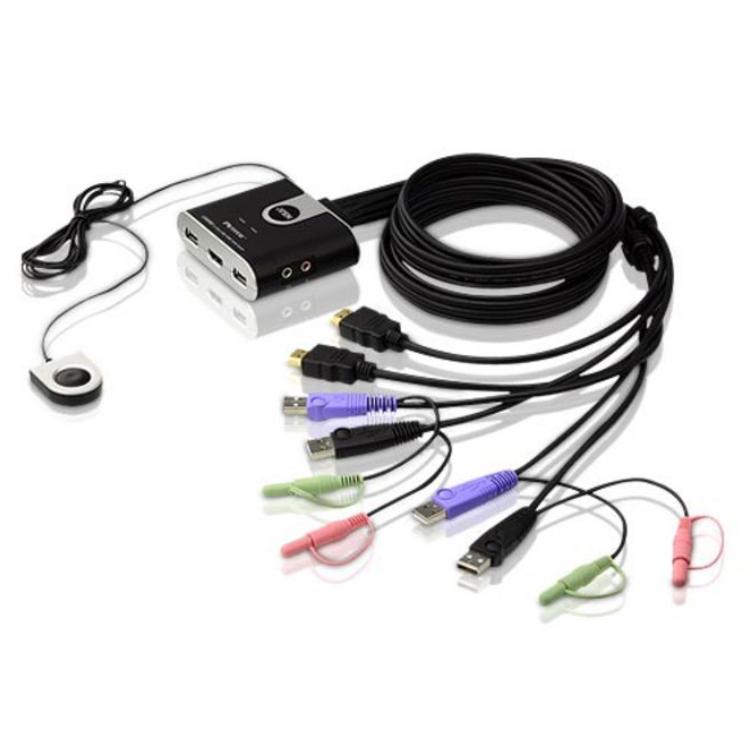

USB KVM Switch 2-Port HDMI – 1920x1200@60Hz This USB KVM switch allows you to control 2 computers with HDMI video using 1 console, consisting of 1 HDMI monitor, 1 USB keyboard, and 1 USB mouse. The switch toggles video, keyboard, and mouse signals between the connected computers. Switching is done via hotkey combinations, via the USB mouse, or via scan mode. The maximum supported resolution is 1920x1200. Support for 1080p is available within this resolution limit. Speaker audio is transmitted via HDMI. Audio cannot be switched separately from KVM. The KVM switch is equipped with fixed, integrated cables with a length of 1.2 m per connection. External power supply is not required. Inputs The switch has 2x HDMI and 2x USB via fixed cables for connection to computers. Outputs The console offers 1x HDMI output for the monitor and 2x USB connections for keyboard and mouse. Image and video support Supports a maximum resolution of 1920x1200. Higher resolutions are not supported. Audio Supports audio transmission for speakers via HDMI. Audio is not independently switchable. Switching Switching via hotkey, USB mouse, and scan function. Switching via OSD or push buttons is not supported. Power The KVM switch operates without external power and is powered via USB. Design Compact housing with fixed cables, black color. Not suitable for 19-inch rack mounting. Specifications • Product type: KVM switch HDMI • Number of computers: 2 • Video inputs: 2x HDMI (fixed cables) • USB inputs: 2x USB (fixed cables) • Video output: 1x HDMI • USB console: 2x USB • Cable length: 1.2 m • Max. resolution: 1920x1200 • Switching: Hotkey, USB mouse, scan • Switching via OSD: No • Audio: Speaker via HDMI • Audio separately switchable: No • USB hub: No • Keyboard/mouse emulation: Yes • 19-inch mounting: No • Cascading: No • External power supply: Not required • Color: Black • Dimensions (HxWxD): 670 x 82 x 26 mm • Weight: 0.54 kg Explanation of terms used • KVM switch: Device that controls multiple computers via a single keyboard, monitor, and mouse. • Scan mode: Automatically switches between connected computers. • Hotkey: Key combination to manually switch between computers. • Keyboard/mouse emulation: Simulates connected input devices for stable operation when switching. Ask a product question
