Ubbink Ubbink Solarmax 1000 battery

Garden pumps are not always near a power outlet, but the Solarmax 1000 set from Ubbink can work independently without electricity.

Solarmax is easy to install and keeps the pump in an ideal condition.

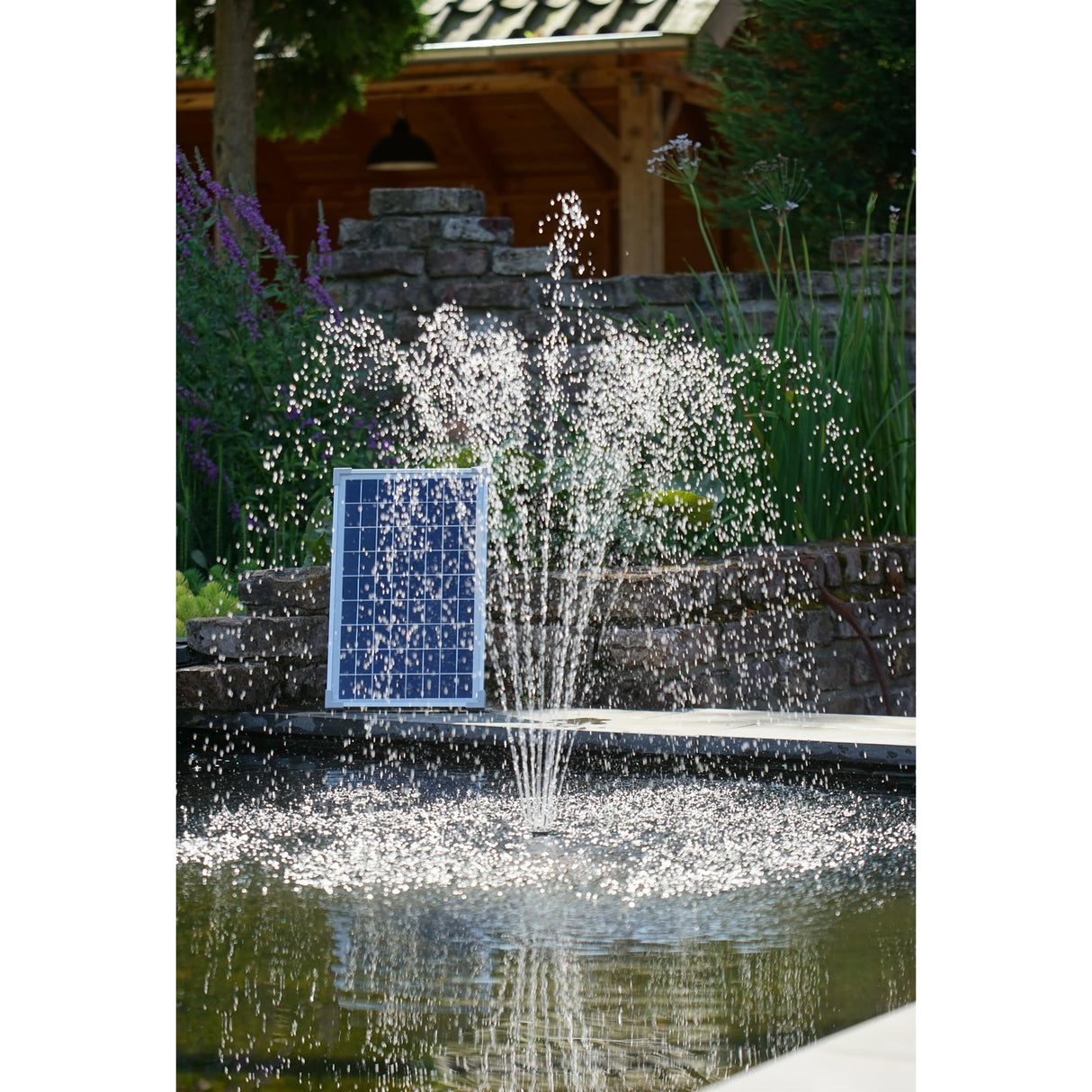

This device uses solar energy to operate an attractive water feature in the garden. Depending on the solar radiation and the model, the pump can reach a circulation speed of 1,350 l/h.

The solar panels are weather -resistant and therefore durable.

The delivery contains 1 solar module with ground pin, 1 solar pump with 5 m connection cable, 1 battery with a 5 m connection cable, 4 lead tubes and 2 water jets.

• Solar panel dimensions: 52 x 35.5 x 2.5 cm (H x B x D)
• Solar module
• Power: 20 W
• Nominal tension: 18 V
• Nominal current: 1,157 ma
• IP protection class: IP65
• Temperature range: -30 ° C to +75 ° C
• Pump
• Work stress: 12 - 18 V
• Workflow: 390 Mon (12 V) - 780 Mon (18 V), 5 - 14 W
• Maximum output: 980 l/h (12 V) - 1,350 l/h (18 V)
• Maximum heading height: 0.9 m (12 V) - 2.1 m (18 V)
• IP protection class: IP65
• Temperature range 5 ° C to 40 ° C
• Cable length: 5 m
• Battery compartment
• Cable length: 5 m
• IP protection class: IP44
• Temperature range: 5 ° C to 40 ° C
• Battery
• Category: rechargeable
• Connection flat plug 4.8 mm
• Voltage / current: 12 V / 7 AH
• Full discharge protection
• Dimensions: 151 x 65 x 97.5 mm (L x B x D)
• Including the delivery:
• Solar module with ground pin
• Solar pump with 5 m connection cable
• Battery with 5 m connection cable
• 4 Roller tubes and 2 Waterjets

The pump is designed for use with direct current (DC). The pump may never be connected to AC network current. • Do not hit the solar unit by hand, tools or other objects. Damaged solar units cannot be repaired and must be removed in an environmentally friendly way. • Never open the housing of the device or its parts, unless this is explicitly indicated in the user manual. • The pump may not be used without water, because this can lead to irreparable damage. • This device is suitable for pumping water with a temperature from min. 5 ° C to max. 40 ° C. • The pump is not intended for use in salt water or for moving drinking water. • The device is not suitable for use by persons (including children) with reduced physical, sensory or mental capacities or a lack of experience and knowledge, unless they are under supervision or instructed about the use of the device by a person responsible For their safety. Children must be supervised to ensure that they do not play with the devices. • If the solar unit is installed without a holder, then sufficient stability must be insured to prevent damage. • Store the battery out of reach of children. • Keep small parts and packaging materials away from children. Danger! • The battery box may not be placed in direct sunlight or in water.
