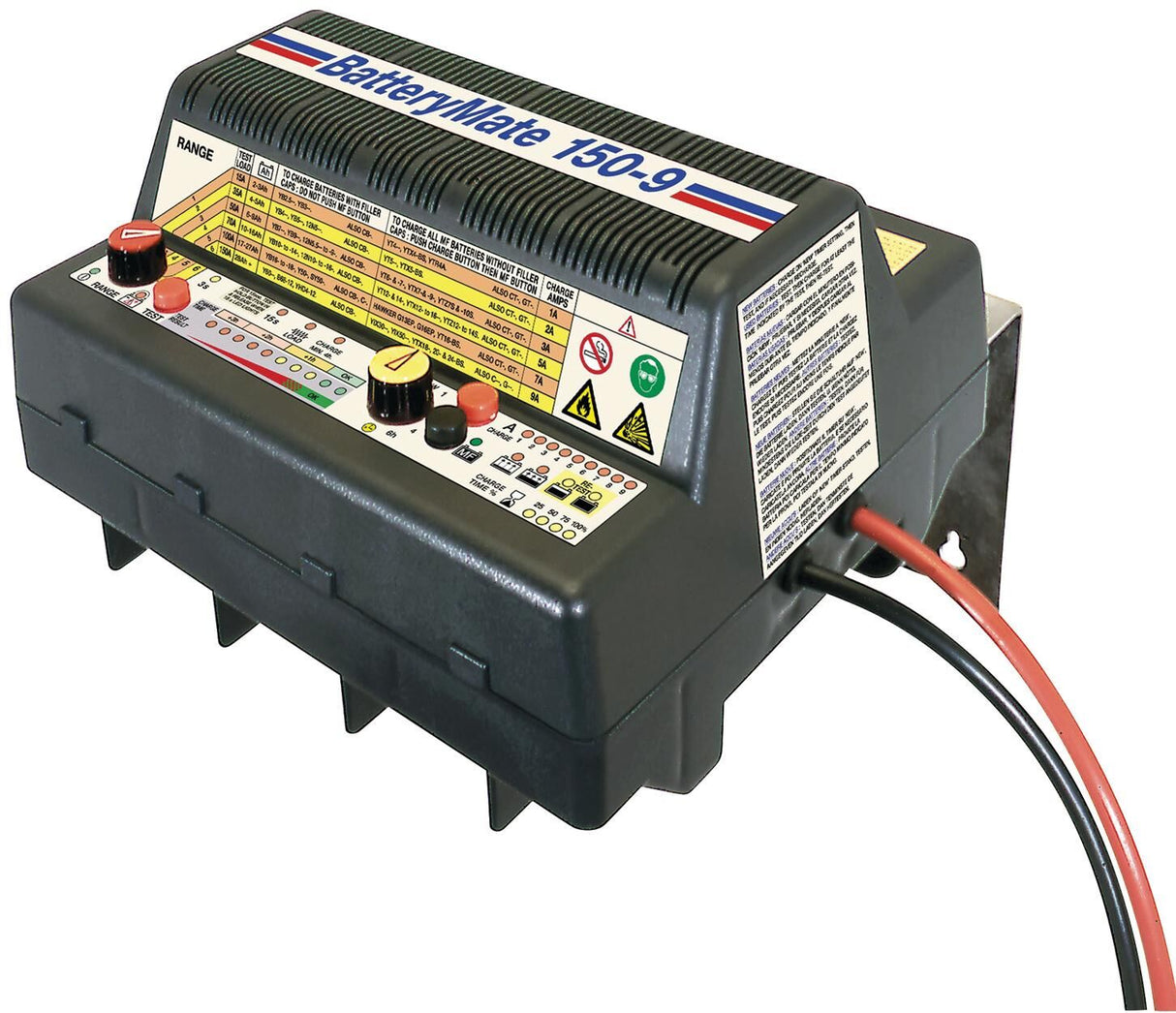

Battery charger batterymate 150-9 charger batterymate 150-9

The automatic, multi-stage 12 volt charger for the workshop including wall bracket. Ideal for 12 V standard, AGM and gel batteries with 2 Ah - 40 Ah nominal capacity. The charging circuit automatically recognizes sulfated batteries and starts the repair. It also includes a unique, auto-adaptive program for the essential initial "picking charge" of new fully enclosed MF/AGM motorcycle batteries. Six constant current charge settings from 1Ah - 9Ah and a 4-stage charging program Quick activation of new batteries: 30 minutes activation charge only for new batteries that have been filled with acid immediately before charging, such as standard wet batteries with removable caps and dry-charged AGM-MF batteries that come with a separate acid pack. Load tester selectable from 15 A to 150 A: Automatically tests battery starting current up to 330 CCA. Normal engine cranking/starting is simulated in a 3 second test and the battery health condition is determined in a 15 second test. Motorsport-specific charging algorithm: 4-stage charging restores any 12 V battery. The MF mode allows max. 16.9 V dry-charged AGM batteries. Temperature-controlled charging: the charging voltage is adjusted to the ambient temperature. (-4 mV / °C / cell above / below 68 °F / 20 °C). Exact voltage measurement: The charging cables are equipped with integrated voltage sensor wires for an exact voltage measurement at the battery. Easy to use: The 6-position combination switch allows you to select the correct test and charging current for the connected battery. TEST and then select the maximum charging time based on the result, press the CHARGE key. The program automatically completes charging and then checks the battery. Charging current: 9 A maximum, 1, 2, 3, 5, 7, 9 Amp selection Test current: 150 A maximum, 15, 35, 50, 70, 100, 150 Amp selection Use: room / workshop environment (lowest temperature: -4 °F / -20 °C) Repair: start with a low voltage of 1 V + high power desulfation recovery Input: selectable 110 - 120 VAC / 220 - 240 VAC, 50 - 60 Hz, with main switch and replaceable fuse Version: ventilated industrial table enclosure with optional wall holder (TS-218), 180 cm power cord and 1 pair of 180 cm charging cables for high power consumption with powerful battery terminals Safety: No risk of overcharging, spark suppression, safe for long-term battery maintenance, automatic switch-off in the event of a short circuit or disconnected battery, 2 year warranty Battery type AGM, MTF, standard Properties protection against overcharging, short-circuit protection Main color black Application range motorcycle, scooter Charging current / load capacity 9.0 A Voltage 12 V Type / type Article Version workshop equipment
