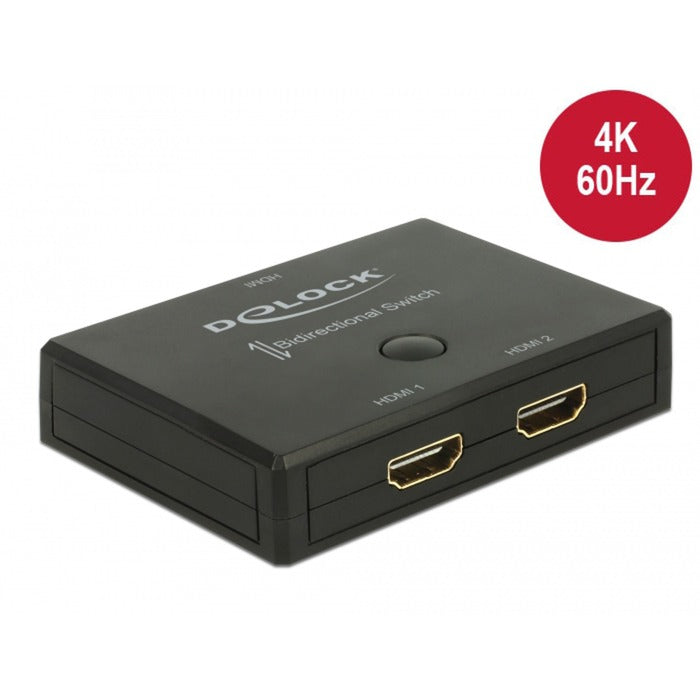

Bi-directional HDMI switch

HDMI™ Switch 2x HDMI Input to 1x HDMI Output / 1x HDMI Input to 2x HDMI Output – HDMI™ 2.0 – 4K@60Hz This HDMI™ switch is a manual bidirectional switch for connecting HDMI™ devices. The device can be used to switch two HDMI™ source devices to one display or to switch one HDMI™ source between two displays. Simultaneous display on multiple screens is not possible. HDMI Inputs In application 1, the HDMI™ switch has 2x HDMI-A female inputs for connecting HDMI™ source devices. In application 2, 1x HDMI-A female connection acts as an input for the source device. Only one input is active at a time. HDMI Outputs In application 1, 1x HDMI-A female connection is available as an output to a display. In application 2, 2x HDMI-A female outputs are available for connection to two displays, with one output active at a time. Image and Video Support The HDMI™ switch supports resolutions up to 3840 × 2160 @ 60 Hz (4K UHD). This corresponds to the HDMI™ 2.0 level. The actual resolution depends on the connected source device and display. HDMI Level HDMI™ 2.0 – Premium High Speed with support for 4K@60Hz video signals. Color and Image Formats Supports standard HDMI™ color encodings RGB and YCbCr within the HDMI™ 2.0 specification. HDR Support HDR signals are supported and passed through. The HDR signal is transmitted unchanged from source to display. Audio Support Supports digital audio transmission via HDMI™. Audio and video are transmitted combined via the same HDMI™ connection. Switching Method Manual selection of the HDMI™ port via a push button on the device. Signal Direction Bidirectional. The device can be used in two different signal directions, but only one direction and one signal at a time. Power Supply No external power supply required. The device is powered via the HDMI™ connection. Design The casing is made of plastic. The compact design is suitable for fixed placement. Specifications • Product type: HDMI™ Switch • HDMI version: HDMI™ 2.0 – Premium High Speed • Application 1 input: 2x HDMI-A female • Application 1 output: 1x HDMI-A female • Application 2 input: 1x HDMI-A female • Application 2 output: 2x HDMI-A female • Max. resolution: 3840 × 2160 @ 60 Hz • HDR: supported (pass-through) • Switching method: manual via push button • Signal direction: bidirectional • Power supply: via HDMI™ • Housing material: plastic • Dimensions: 82 × 62 × 17 mm Explanation of terms used • HDMI™ Switch: Device that allows HDMI™ signals to be manually switched between multiple sources and displays. • HDMI™ 2.0 – Premium High Speed: HDMI™ standard with support for 4K@60Hz video. • 4K@60Hz: Video resolution of 3840 × 2160 pixels with 60 frames per second. • HDR pass-through: Unchanged transmission of HDR video signals from source to display. • Bidirectional: Ability to use the device in two signal directions, but not simultaneously. • HDMI-A: Standard HDMI™ connector of type A. Ask a product question
