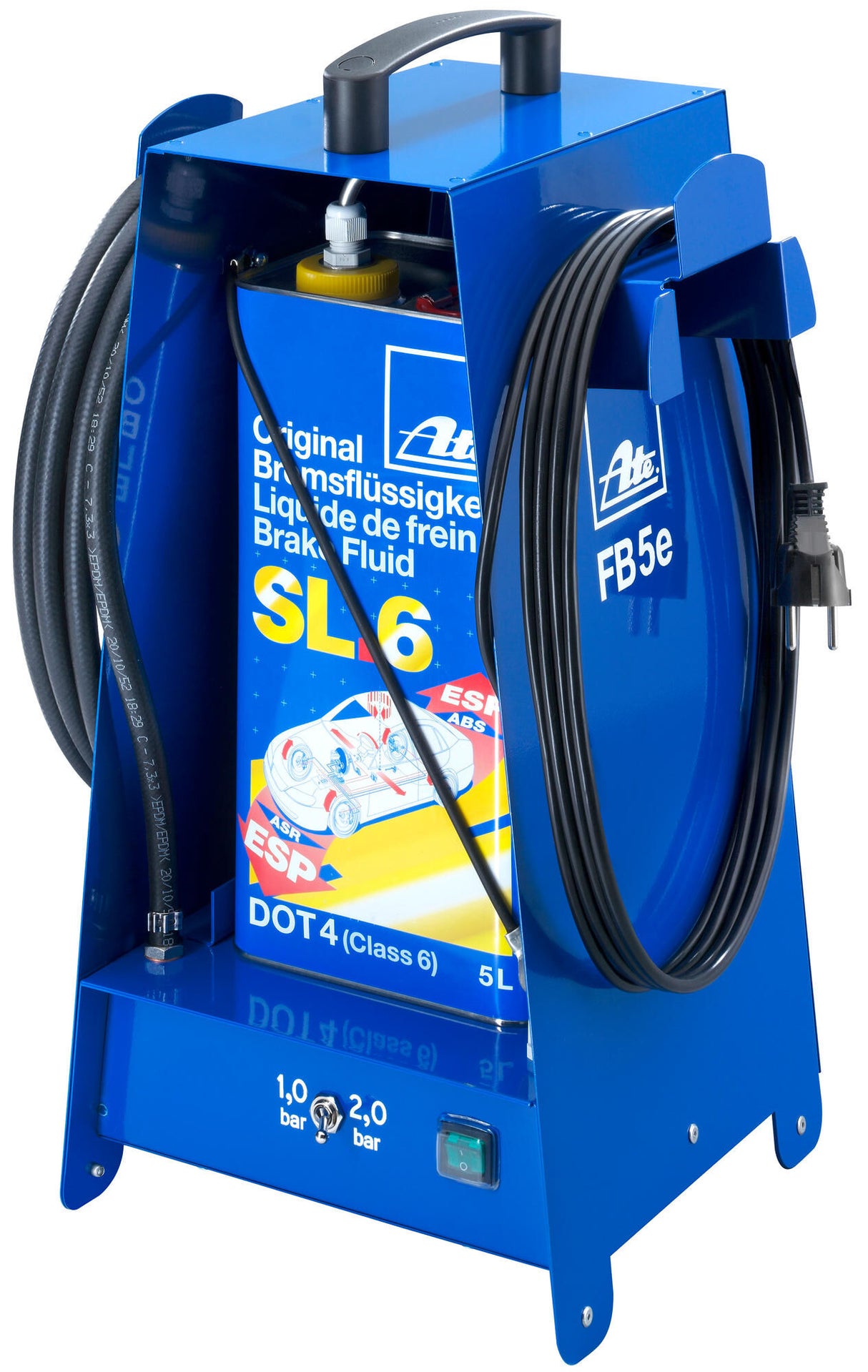

Ate brake bleeding device fb 5e brakes fan fb5e

For filling, flushing and bleeding electronic brake systems, 5 litres. Two pressure levels (1.0 and 2.0 bar) adjustable via toggle switch, thus no pressure gauge control necessary. No need to transfer brake fluid. Can is fixed in the device with a tension strap, suction lance is held in the container by a screw connection. With holder for filling hose and power cable, receptacles for the three bleeder nipples on the back of the device and large handle for carrying. All materials resistant to brake fluid. Technical data: Mains connection: 230 V / 50 - 60 Hz, Pump delivery rate: 12 L/h at 2 bar back pressure, automatic pump shutdown at approx. 9 mm residual filling level in the container, connection cable: 4.2 m, filling hose: 3.5 m, dimensions (H x W x D): 530 x 270 x 250 mm Scope of delivery: Complete device, operating instructions, bleeder nipple No. 20 (European nipple) Application Filling, bleeding Type Item Version Brake system Operating pressure 2.0 bar Area of application Brake fluid Flow rate 12 l/h Main colour blue Height 530.0 mm Length 250.0 mm Use Minivan, commercial vehicle, car, van
