Imp cable box

Name: Imp cable box
Brand: Imp
SKU: 6410016125095
Price: 9.99 EUR
Availability: OutOfStock

Sold out

€9,99 Incl. VAT

Imp | EAN/GTIN: 6410016125095

Out of stock Currently unavailable

Since 2015 - Dutch company

14-day return policy (within EU) Worldwide shipping

Secure payments

Secure payment

Producteigenschappen

Google Product Category Wire Partitions, Enclosures & Doors

Pattern Square

Purchasing for business?

Volume discount Competitive rates → Dropshipping Neutral shipping → Datafeeds CSV, XML, API → View all business options From NL warehouse →

Description

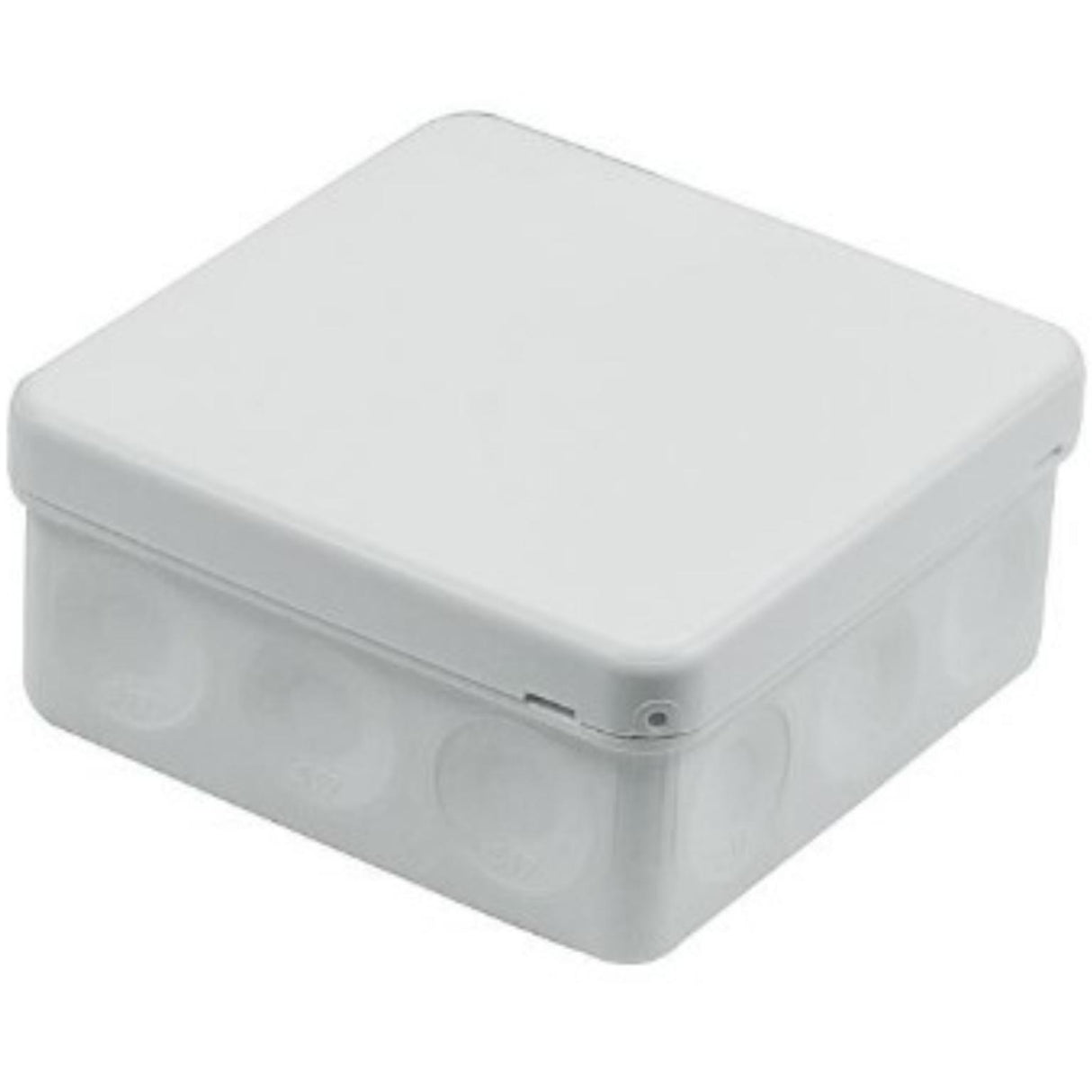

The square junction box AP9 (2.5 mm², 500 V) is equipped with 12 membrane cable entries for cables up to Ø 17 mm on the sides, and two at the bottom for cables up to Ø 19 mm. Cables are easy to connect by simply pushing the stripped ends through the entries. The box locks with a click and can be opened by inserting (for example) a screwdriver into the opening slots – no screws are needed. The box can be fitted with strain reliefs AS9, AS9.1 and AS9.3, suitable for Ø 6 - 15.5 mm cables. VDE-approved. Installation temperature -25...+60 °C. Made of halogen-free material (IEC/61249-2-21). Ask a product question
