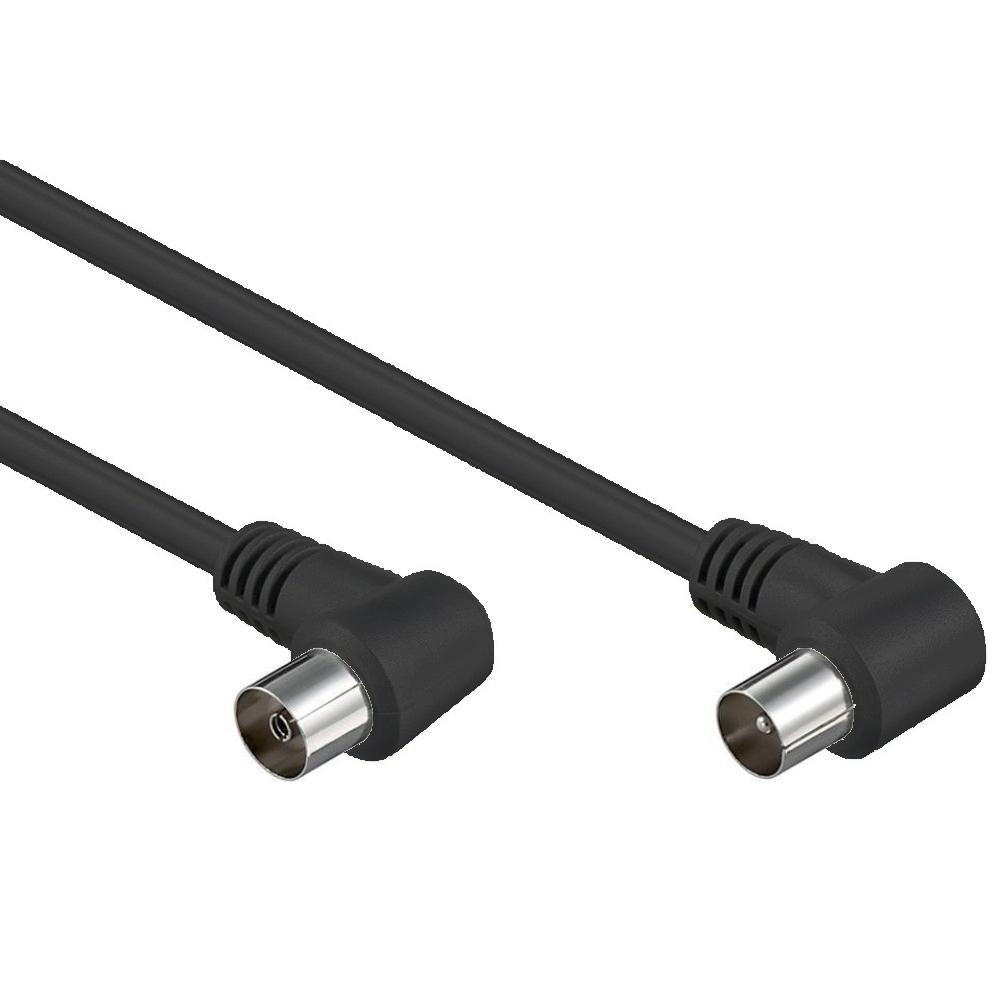

Abi coaxial cable - 1.5 meters

This 75 Ω coaxial cable is designed for connecting television, radio, or receiver equipment to a coaxial wall outlet within DVB installations. The cable is double-shielded (70 dB) and features right-angled IEC connectors (90°) for installation in confined spaces. The fully shielded connectors ensure stable signal transmission within standard digital home installations. **Specifications** • Connector 1 IEC plug (male), 90° • Connector 2 IEC socket (female), 90° • Impedance 75 Ω • Shielding class Basic digital installation • dB value 70 dB • Shielding Double shielded • Shielding type 1 Foil (aluminium) • Shielding type 2 Braided shield (aluminium) 32x • Inner conductor CCS, 0.5 mm • Outer diameter 5 mm • Jacket PVC • Contact finish Nickel-plated • Connector shielding Fully shielded **5G / LTE protection** With a shielding rating of 70 dB, this cable offers basic protection within standard home installations. For environments with strong LTE or 5G signals, a cable with a higher shielding rating (≥95 dB or Class A) is recommended. **Application** Suitable for connecting televisions, receivers, and radio equipment with an IEC coaxial connection. The right-angled design simplifies cable routing where installation depth is limited or equipment is placed close to the wall. **Explanation of terms used** **DVB** Digital television standard for cable, satellite, and terrestrial. Suitable for receiving Full HD (1080p), Ultra HD 4K, and 8K via DVB installations; the final resolution depends on the signal provided. **Impedance (75 Ω)** The characteristic resistance of television and cable installations. Components within one installation must have the same impedance to prevent reflections and signal loss. **Double shielded (70 dB)** Consists of an aluminium foil and a braided shield. This construction limits interference from external signals within standard digital installations. **CCS** Steel core with copper coating; at high frequencies, conduction primarily occurs on the surface of the core. **General explanation of coaxial cable** A coaxial cable consists of a central inner conductor, a dielectric, one or more shielding layers, and a protective outer jacket. This construction ensures controlled signal transmission with minimal interference and low attenuation. 75 Ω cables are used for television and cable installations; 50 Ω cables are used for RF and transmission applications. Ask a product question
