Abi 26h server cabinet

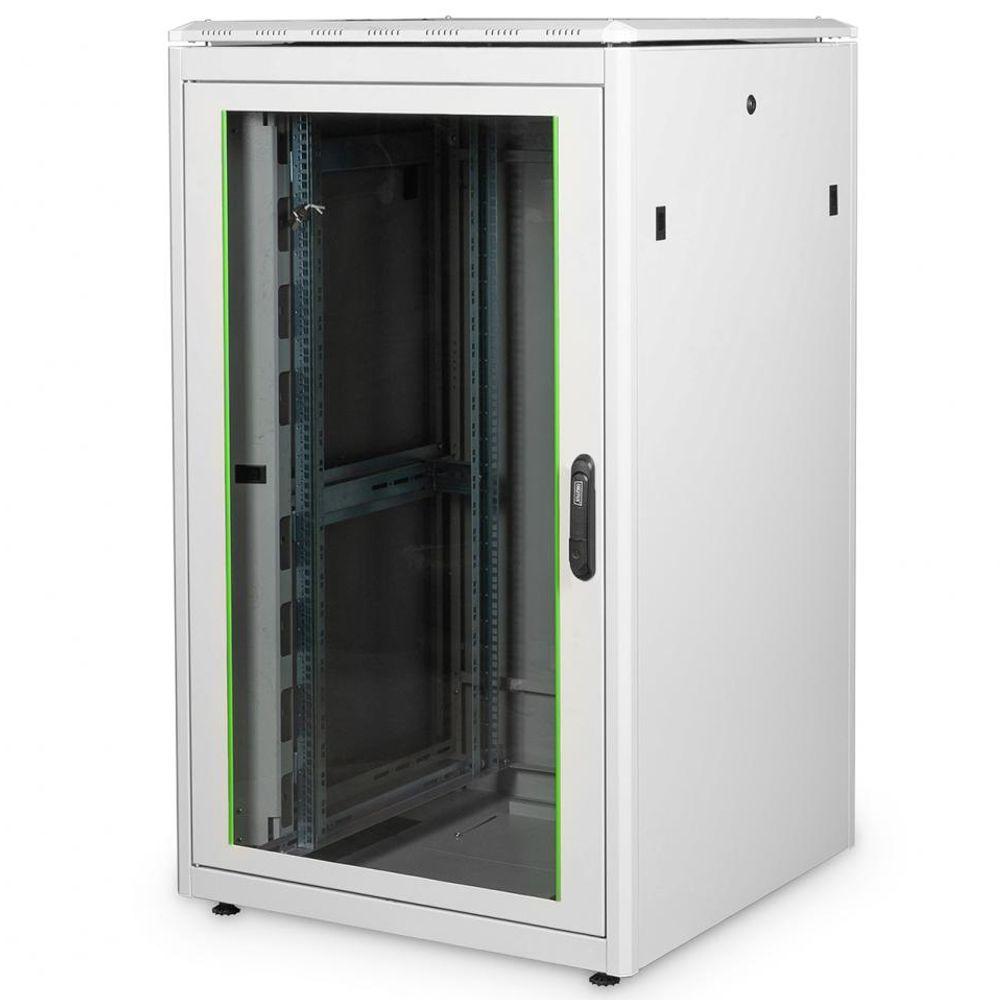

26U Server Cabinet – 19 Inch The 26U Server Cabinet from DIGITUS®'s Unique series is designed for user-friendly installation of both active and passive network components. With a robust steel construction, optimal ventilation, and extensive cable management options, this cabinet offers a stable and efficient solution for professional network installations. Specifications Height Unit: 26U Internal width: 19 inches External width: 800 mm External depth: 800 mm External height: 1342 mm Maximum load capacity: 800 kg Color: Grey (RAL 7035) or Black (RAL 9005) Material: Sheet steel (up to 1.5 mm thickness) Front door: Glass Delivery: Fully assembled Key Features Sturdy steel construction with special bending technology for maximum stability Fully powder-coated in grey (RAL 7035) or black (RAL 9005) Doors are easy to dismantle; door stop can be reversed Equipped with 4 galvanized 19” profile rails (front and rear), depth-adjustable Profile rails are marked with height units (U-marking in both directions) Connected with deep struts for sturdy mounting of heavy 19” components Ventilation slots in the roof for improved air circulation Roof prepared for installation of a fan module Sliding cable entry at the bottom with foam rubber seal Two cable entries with brush strip at the rear (top and bottom, from 26U) Additional cable entries with brush strip in roof and floor (from 800 mm width) Vertical cable management channels at the front (from 32U and 800 mm wide) Description The DIGITUS® Unique series was developed with a focus on functionality, stability, and ease of installation. The cabinet is made of up to 1.5 mm thick steel, which ensures a particularly robust construction thanks to advanced bending technology. The powder coating in grey (RAL 7035) or black (RAL 9005) not only provides protection against wear but also ensures a professional appearance. The 26U server cabinet offers excellent options for ventilation and cabling. The roof contains ventilation slots and is prepared for the installation of an active ventilation unit, allowing for efficient air circulation. In addition, the cabinet features various cable entries with brush strips at the rear, top, and bottom, and – for wider versions – also on the left and right. These extensive cable management options make an organized installation simple and clear. Inside, four galvanized 19” profile rails are installed, marked with height units in both directions. The rails are depth-adjustable and connected with reinforcement struts, so even heavy equipment can be mounted without problems. For versions from 800 mm wide, vertical cable management channels are integrated at the front, providing additional structure for cabling. Advantages Professional server cabinet with high stability and load capacity Extensive ventilation and cable management options Depth-adjustable 19” profile rails with U-marking Sliding cable entry with seal for dust protection Prepared for active ventilation Doors and panels easily removable Robust steel construction with durable powder coating Suitable for both active and passive network components The 26U Server Cabinet from the DIGITUS® Unique series is the ideal choice for those seeking reliability, flexibility, and a neat installation solution. Thanks to its well-thought-out construction and high-quality finish, this cabinet meets the demands of modern IT environments. Ask a product question
