The Vijverfilter Filtraclear 8000 Plusset from Ubbink is a filter system with three rooms. The mechanical filtering (with filter mats and biological grains) takes place in the Senate and the biological filtration takes place in the Lower House. This consists of a fine filter sponge, organic granules and a filter medium with a bacterial team that ensures that the water stays clear. The UVC unit ensures that algae growth remains under control.
The Ubbink Elimax Vijver pumps are high -quality products and based on the latest technology. The pumps use synchronous technology and are suitable for use in garden ponds, fountain basins and in combination with, among other things, water fountains and spray figures.
The filtraclear series consists of 2 sets: basics set: 1x filtraclear and 1 x algler, suitable pump must be ordered extra. Plus set: 1x filtraclear, 1 x algler and 1 pond pump, this is a complete set.
To keep the water in your pond clear and clean, it is important to filter the water. For this you can use the Ubbink Filtraclear basics set or the Ubbink Filtraclear Plusset. Filtraclear is a closed filter system with several rooms for a biological-mechanical cleaning of the water in your pond.
- Dimensions: 39.5 x 29.5 x 39 cm (B x D x H)
- Ubbink Filtraclear, 3 rooms 25 L
- Suitable for ponds (without fish) of 8,000 l
- Suitable for ponds (with fish) of 4,000 l
- Ubbink AlgClear UV-C 7000
- Power: 9 W
- Ubbink Elimax 2000 pond pump
- Food: 230 V ~ / 50 Hz
- Length Power cable: 10 m
- Flow rate: 2,000 l/h

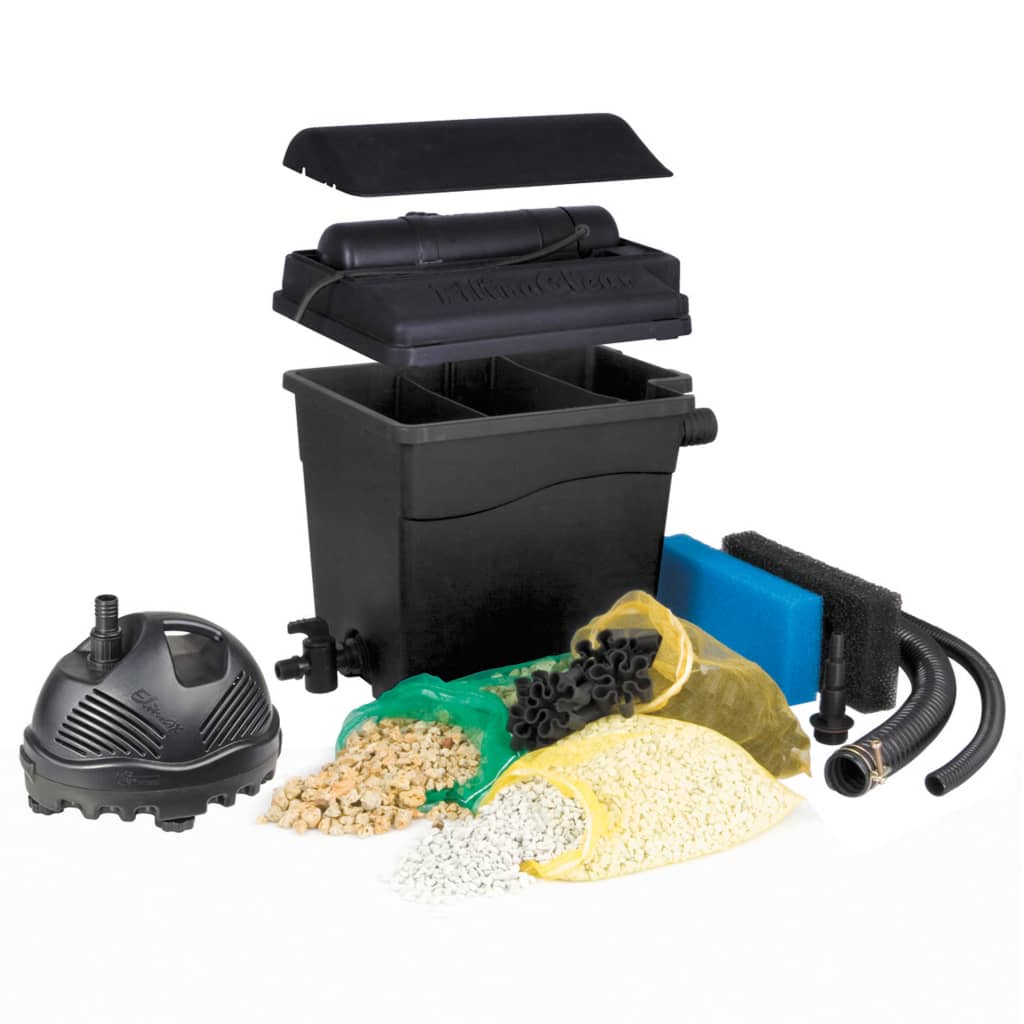

- Delivery contains:
- 1 x Ubbink Filtraclear
- 1 x Ubbink AlgClear
- 1 x Ubbink Elimax 2000
- Fasteners:
- 1 x Zeolith with mesh: 1.8 kg
- 1 x bio-core with mesh
- 1 x filter substrate with mesh: 3 kg
- 2 x filter sponge 35 mm, 1 x black ppi 10, 1 x blue ppi 20
- 1 x Kogelventiel 1 "; nut and soder
- 1 x pond hose for filter waste: 1 m x 40 mm
- 1 x pond hose for filter addition: 3 m x 19 mm
- 3 x hose clamp: 1 x (38 - 42) mm and 2 x (20 - 23) mm
Here is the translation of your text into Dutch: safety advice warning: UV rays are dangerous in mind and skin. The UV-C Emitter may not be operated if it has been removed from the device's housing! Careful: This device contains a UV-C Emitter! Unintended use of the device or damage to the housing can lead to the emission of dangerous UV-C radiation. UV-C radiation can also be damaged in small doses and skin. • The power supply must meet the product specifications. Do not connect the device if the power supply does not meet the specified requirements! Further information can be obtained from your local approved electrician. • The Ubbink AlgClear UV-C device must only be operated via an earth leakage switch (Fi switch /RCD) with a nominal fault current of no more than 30 mA. For further information you can contact your specialized electronics dealer. • The Ubbink AlgClear UV-C device may only be put into operation after the entire installation of all components and hose connections. The device may not be used in water under any condition and must be installed next to the pond, so that overflow is excluded. • The operation of the UV-C lamp may only be checked by visual inspection via the viewing glass (at the front of the device). Direct contact with the UV-C rays can cause damage to the eyes and/or skin. • No transparent hoses may be used for the functioning of the AlgClear UV-C device. We recommend using our black spiral pegs. Furthermore, the inlet and exhaust hoses with hose clamps must be attached to unintentionally release the hose nipple. • The device must be installed at more than 2 m distance from the pond or water bowl and the socket. • To prevent overheating of the UV-C lamp, the AlgClear UV-C device may only be switched on if water flows through the housing. Never operate the UV-C lamp outside the housing! • The device may only be operated at a water temperature from +5 ° C to +35 ° C. • It is essential to read the instructions before the AlgClear UV-C device is opened. • The power supply of the AlgClear UV-C device must always be switched off before the device is opened (for the first mounting, cleaning, installation and replacement of the UV-C lamp, etc.). • The power cable cannot be replaced. If the cable is damaged, the AlgClear UV-C device must be thrown away. • The device may be used by children from the age of 8 and also by people with physical, sensory or mental disabilities or without suitable knowledge and experience, provided they have received guidance or have received instructions about the use of the device and understanding the corresponding hazards. Children are not allowed to play with the device. Cleaning and maintenance may not be carried out by children without supervision. • Keep children away from packaging material and small parts. There is a risk of suffocation. NB! Before intervening (first assembly, cleaning, installation and replacement of the UV-C lamp, etc.), the power supply of the Algclear UV-C device must always be interrupted! 1. Determine the location for the AlgClear UV-C device by taking into account the distance to the pond pump and a possible existing or planned pond filter. For example, if a waterfall is present, the AlgClear UV-C device can also be connected to a higher location to allow the UV-C-radiated water to flow back to the pond via the waterfall. 2. Place the UVC lamp Before the device is switched on as described on page 2 of this manual: a) Loosen the screw lid and remove it from the housing (Fig. 1.1 and 1.2) b) Bart the UVC lamp in the base , Place the protective cap on the glass of the UVC lamp and mount the device again (Fig. 1.3-1.6) 3. Confirm the Algclear UV-C device with a few stones so that the device is stable and cannot fall into the water. Mounting on a wooden board is also possible. 4. Attach both mounting brackets with a clip closure to the AlgClear UV-C device and adjust it by simply turning it so that it can later be installed or screwed horizontally or vertically. 5. The universal hose couplings shorten according to the hose connections for inlet (pump) and exhaust (filter or return to the pond). 6. Screw the hose couplings on the inlet and exhaust connections. Handproof tightening is sufficient for the seal. Tighting too tightly can cause the opposite or even damage to the AlgClear UV-C device or the hose coupling. 7. Shorten the pond hose to the required length. Attach the hose with hose clamps to the hose couplings. Make sure that the hose clamps do not damage the spiral winds of the pond hose and no hairline cracks arise. If this does happen, the hose shortens the length of the damaged part. Note: If it still leaks at the connection between the hose and the hose coupling, you can stop this through commercially available Teflon tape to wrap the hose coupling. 8. To start up the AlgClear UV-C device or:-the seal cover of the AlgClear UV-C device is correctly tightened,-the inlet and exhaust connections of the AlgClear UV-C device are hand-resistant,-the Hose connections between filter pump and pond filter or return to the pond are good,-the instructions for the AlgClear UV-C device has been read and the safety advice has been followed. 9. After all this you can switch on the AlgClear UV-C device in the following order:-Always first switch on the pond or filter pump and check that the pond water flows smoothly through the AlgClear UV-C device and whether there is still anyway are leaks. -Then turn on the AlgClear UV-C device and check the operation of the UV-C lamp via the viewing glass (at the front). There is no direct danger; The harmful UV-C radiation does not penetrate the material. 10. The disabling the installation, for example for maintenance, is done in reverse order, that is, always first switch off the AlgClear UV-C device and then the pond or pond filter pump. MAINTENANCE NOTE! The supply of the power supply must always be removed first before you intervene (clean, install and replace the UV-C lamp, etc.)! The AlgClear UV-C device must be cleaned at least twice a year, depending on the pollution of the pond. If the algae in your pond increases again, the quartz tube, in which the UV-C lamp is located, must be cleaned of dirt and lime deposits with a soft cloth moistened with a mild cleaning agent (eg vinegar solution). Avoid scratches on the quartz glass and, if possible, do not hold the glass tube immediately with the hands. Even small traces of sweat and fat on the quartz glass can burn through the UV-C radiation in the glass and later reduce the capacity of your AlgClear UV-C device. The UV-C lamps installed in the AlgClear UV-C device have a lifespan of approximately 5000 operating hours. After this operating time, the UV-C capacity is reduced in such a way that the UV-C lamp must be replaced. Suitable reserve lamps are available at your Ubbink Specialist dealer. Perform the maintenance of your AlgClear UV-C device as follows: 1. Always first set out the AlgClear UV-C device and then the filter pump. 2. Loosen the hose connection and let the water run out of the Algclear UV-C device. 3. Open the mounting clips and remove the Algclear UV-C device from the fixings. 4. Remove the glass ball according to the drawings on page 2 of this manual. a) Loosen the screw lid and remove it together with the lamp (Fig. 1.1 and 1.2). b) Carefully remove the glass ball using a 10 mint or 20 cents (Fig. 1.3a and 1.3B) 5. Clean the housing and replace the UV-C lamp if necessary. 6. Mount everything in reverse order after maintenance. Pay attention to the correct placement of the seal rings inside. 7. Then turn the filter pump again and then the AlgClear UV-C device.
